18SCT005

1200V Voltage Monitor

The 18SCT005 is a very accurate (+/-0.75%) voltage divider typically used to sense system voltage from +/-150V to +/-1200V. The nominal gain of 3125ppm is extremely constant with temperature and voltage varying by about 8ppm from -40 to 85C at 800V.

For systems using a voltage pump, the 18SCT005 has a built-in 1kHz low-pass filter eliminates noise from the effect of voltage pumping frequencies thus allowing accurate voltage measurements for portable systems using charge pumps.

The very small footprint of the TSSOP8 (4.4mm) makes this IC ideal for compact application where saving space is important but its linearity and constant
performance across temperature and voltage makes this the ideal choice for HV electronics in general.

Features

Low Cost
3125ppm Divider Ratio (2.500V at 800V)
0.75% Accuracy (23ppm)
+/-2ppm Temperature Stability
+/-2ppm Gain Linearity over voltage
Voltage Sensing up to +/-1200V
Very small TSSOP8 4.4mm package (1400V rating)
Rail-to-Rail output
1kHz Low-Pass HV Filtering
Voltage Buffer with <|2mV| Offset Voltage

Applications

Automotive EV Powertrain and Inverters
Cardiac Defibrillators
Industrial High Voltage Sensing

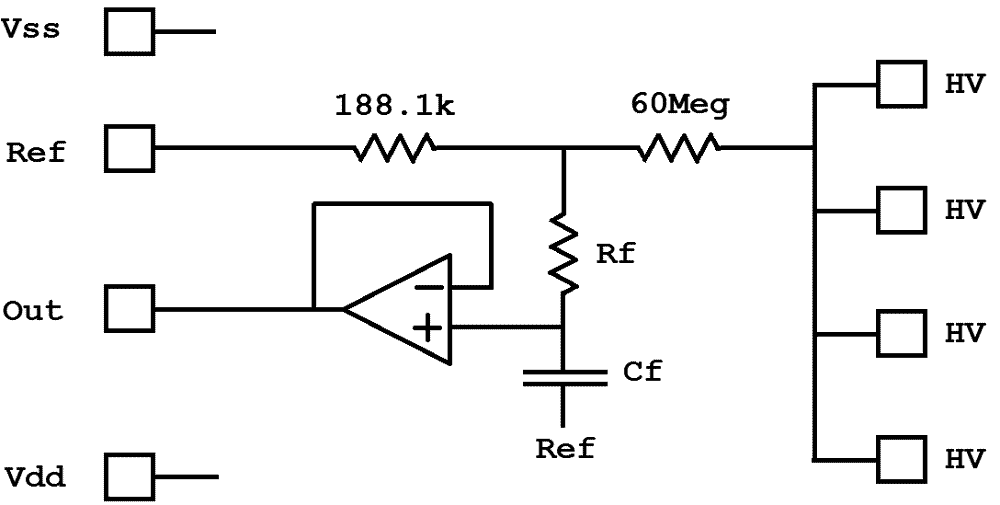

Block diagram

Applications

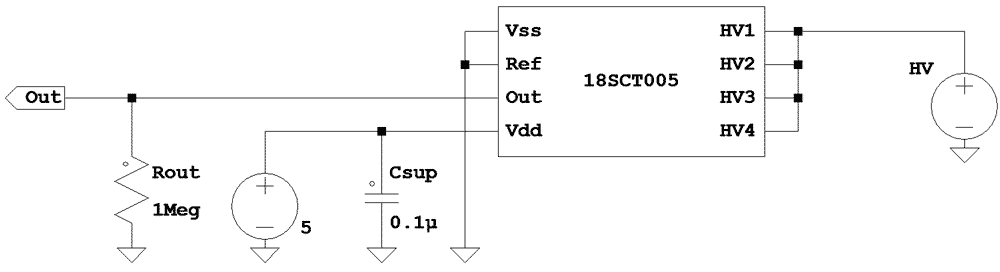

Typical DC application

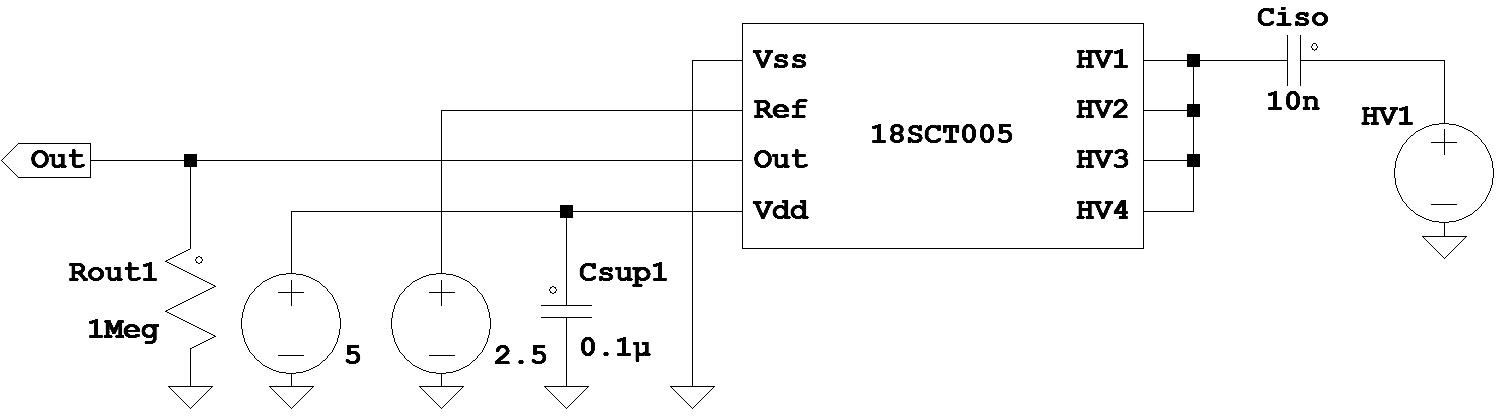

Typical AC application

Available at:

contact us to discuss how we can customize this product to meet your specific needs.
