Medical applications

SimpleChips has extensive experience in ASIC design and manufacturing services for medical applications. Our medical ICs are used in medical implant devices providing live sustaining therapies. We have expertise in ultra-low power designs and in very high voltage analog functionalities allowing optimal performance and a high level of integration. We maintain medical grade level on our entire manufacturing flow including wafer manufacturing, assembly and test.

Process capabilities

Ultra-low-power ASICs
High Voltage ASICs (up to 1600V)
MRI tolerant designs

Efficient Development

Flexible Engagement Model
Experienced Design team (>30 years)
Low NREs using Multi-Projects-Wafers (MPW)

Medical Grade Turn-Key Manufacturing

Medical grade manufacturing flow
ISO-9001 Supply Chain
Low and High Volume

Solutions for Implantable Defibrillators

Feature

IGBT Driver: High Side IGBT/FET driver delivering 40J +
Circuit Charger: Charging Capacitor Bank with no bulky transformer
Capacitor discharging: Discharge Capacitor Bank in controlled fashion
Voltage Sensing: Monitor Capacitor Bank in to insure proper discharging

16SCT000

Transformer-Coupled FET/IGBT Gate Driver

Control of the conduction state of a high-side switch from the secondary of a small high voltage isolation transformer.

18SCT005

1200V Voltage Monitor

The 18SCT005 is a very accurate (+/-0.4%) voltage divider typically used to sense system voltage from +/-150V to +/-1200V.

17SCT004A

1200V Current limiter with enable and temperature protection

The 17SCT004A can very efficiently discharge high-voltage capacitors when needed while protecting itself and surrounding circuitry.

16SCT001

1200V Direct-Coupled FET IGBT Gate Driver

For systems requiring the ability to control the conduction state of a high-voltage MOSFET / IGBT switch

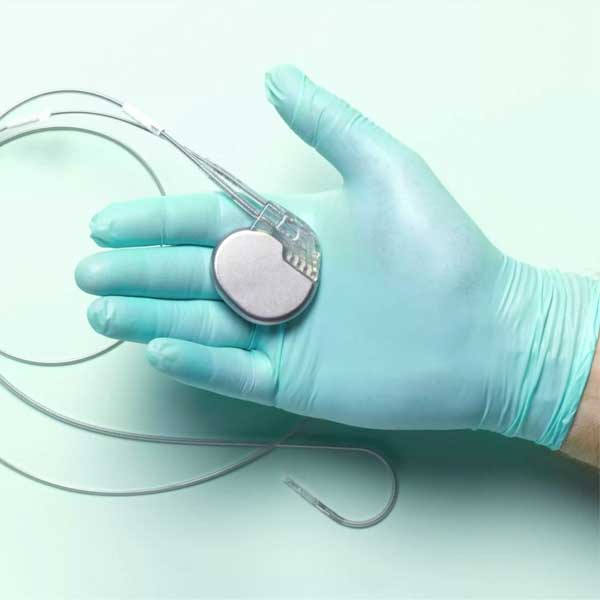

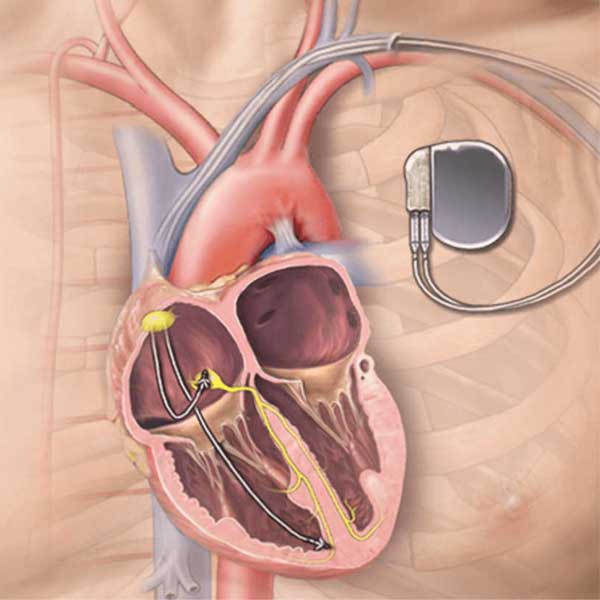

Transient Surge Suppressors (TSS) for Pacemaker and Neurostimulators

Feature

Smallest TSS device for pacemaker
20nSec Clamping Speed
+/- 12V Nominal Break-Over Voltage
Low leakage current
MRI Compatible
Multiple Configuration available:

10SCT

Transient surge suppressors

These low cost SCR-based TVS are ultra fast with a typical clamping speed of 20nSec.
