16SCT001

1200V Direct-Coupled FET IGBT Gate Driver

The 16SCT001E is a high-voltage (1200V max) direct coupled MOSFET / IGBT gate driver typically used in systems requiring the ability to control the conduction state of a high-voltage (HV) MOSFET / IGBT switch. The chip has built-in circuitry to drive the MOSFET / IGBT gate above the HV supply to ensure that the transistor is adequately saturated.

Features

Maximum Blocking Voltage. . . 1200 V
Zero External Components
Direct Drive From Low-Voltage Control Signals
MOSFET / IGBT Gate-Emitter Overdrive Circuitry
Fast IGBT Turn-On & Turn-Off Times
Low HV Current
Ultra-Low Idle Current

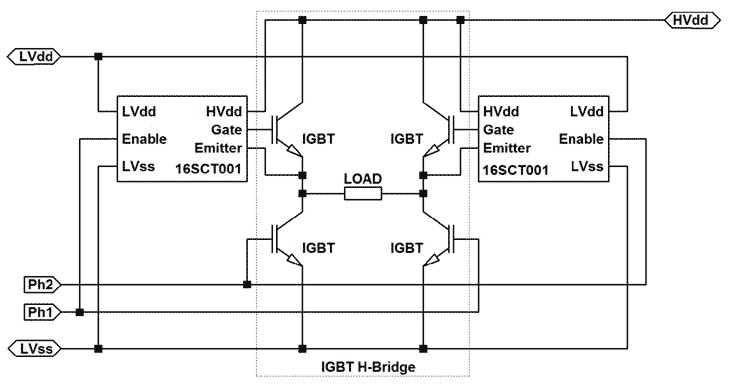

Typical Application:

Available at:

contact us to discuss how we can customize this product to meet your specific needs.
