16SCT000

Transformer-Coupled FET/IGBT Gate Driver

The 16SCT000 is an IGBT/MOSFET gate driver (15V nominal Vg) chip to control the conduction state of a high-side switch from the secondary of a small high voltage isolation transformer. The 16SCT000 will drive the gate of the HV switch above the emitter/source while the secondary winding of the transformer drives the complementary input signals. Upon cessation of the input drive signals, the 16SCT000 quickly clamps the gate to the emitter/source terminal to ensure fast turns off.

Features

Maximum Voltage: 30 V
Transformer Drive provides HV isolation
No other external components required
Fast IGBT Turn-On & Turn-Off Times

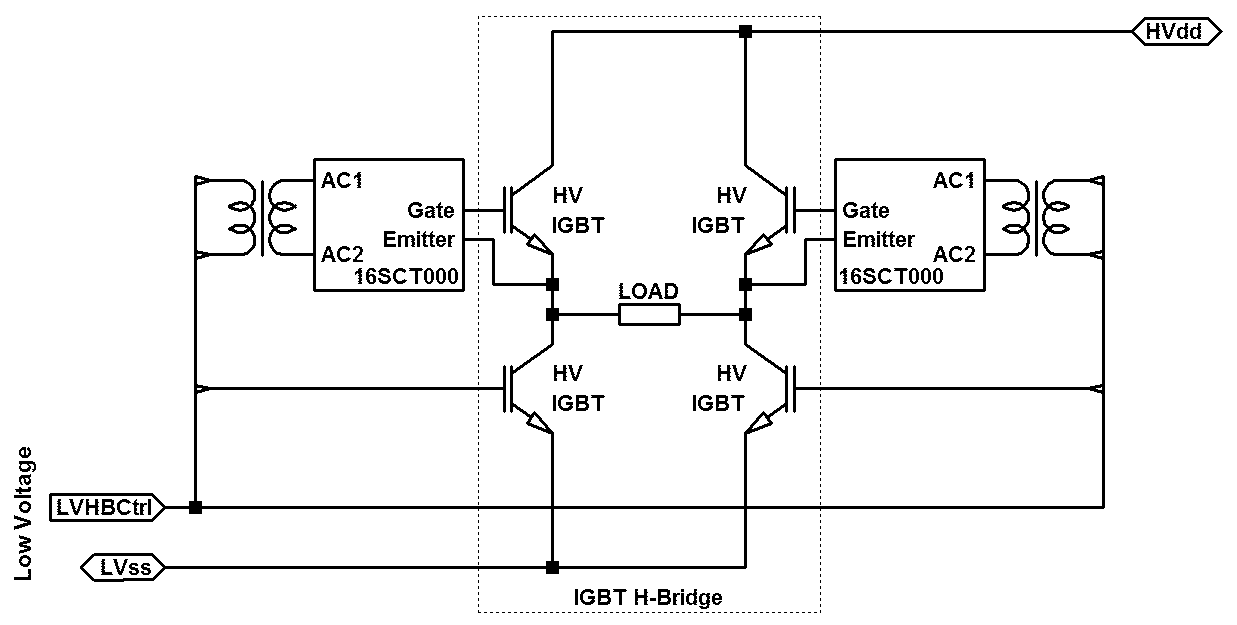

Typical Application

H-Bridge

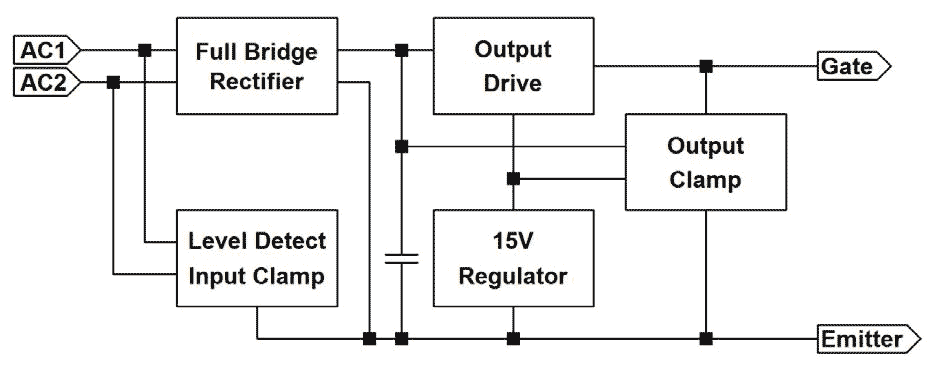

Block diagram

Available at:

contact us to discuss how we can customize this product to meet your specific needs.

related products

18SCT005

1200V Voltage Monitor

The 18SCT005 is a very accurate (+/-0.4%) voltage divider typically used to sense system voltage from +/-150V to +/-1200V.

17SCT002

Direct-coupled high-voltage (1kV) current limiter

The 17SCT004A can very efficiently discharge high-voltage capacitors when needed while protecting itself and surrounding circuitry.

16SCT001

1200V Direct-Coupled FET IGBT Gate Driver

For systems requiring the ability to control the conduction state of a high-voltage MOSFET / IGBT switch

16SCT100

1200V High Side Switch

1200V 15A fully integrated half-bridge high-side switch typically used in systems requiring H-bridges

10SCT

Transient surge suppressors

These low cost SCR-based TVS are ultra fast with a typical clamping speed of 20nSec.

15SCT000

2-channel Rad-Hard Residual Current Device

Dual-channel control circuit intended for application in a Residual Current Circuit Breaker (RCBO) or Residual Current Device (RCD).
