14SCT001, 14SCT002

Opto-coupler or SSR LED driver

These devices are resistor programmable current limiters for use in opto-coupler or solid-state relays were a premium is placed on product quality and performance. Nominally set for 14mA using industry standard 2kΩ setting resistor, the 14SCT00x chips deliver steady performance across the entire extended temperature range of -55°C to 125°C.

Features

  • Metal Shield to prevent LED interaction.
  • Nominal Current 14mA
  • Resistor programmable current
  • -55C to +125C operation
  • Small die size at 1050um X 815um
  • Breakdown voltage > 50V
  • OFF leakage < +/-100uA

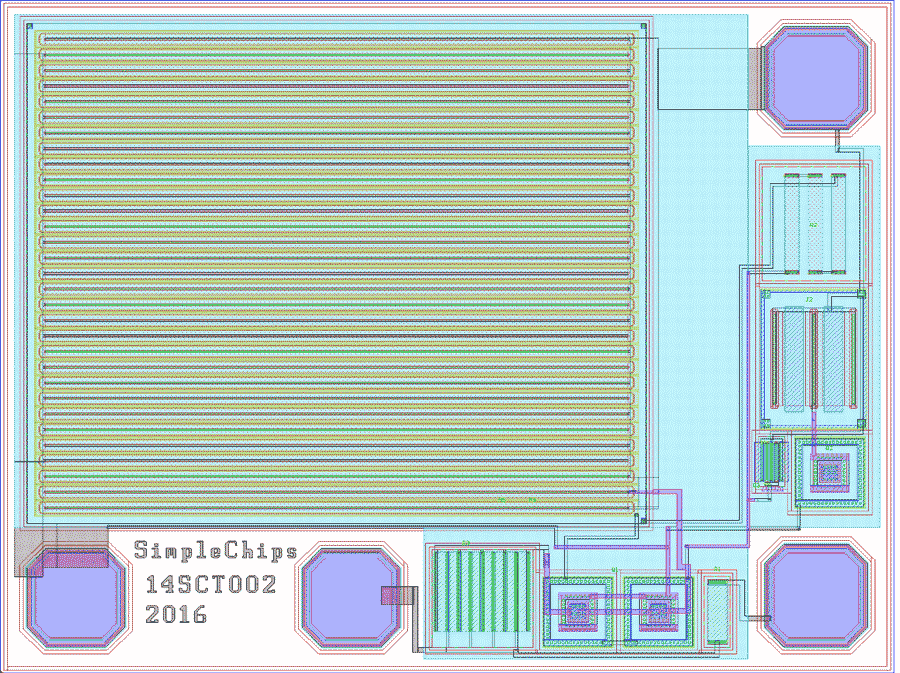

Die

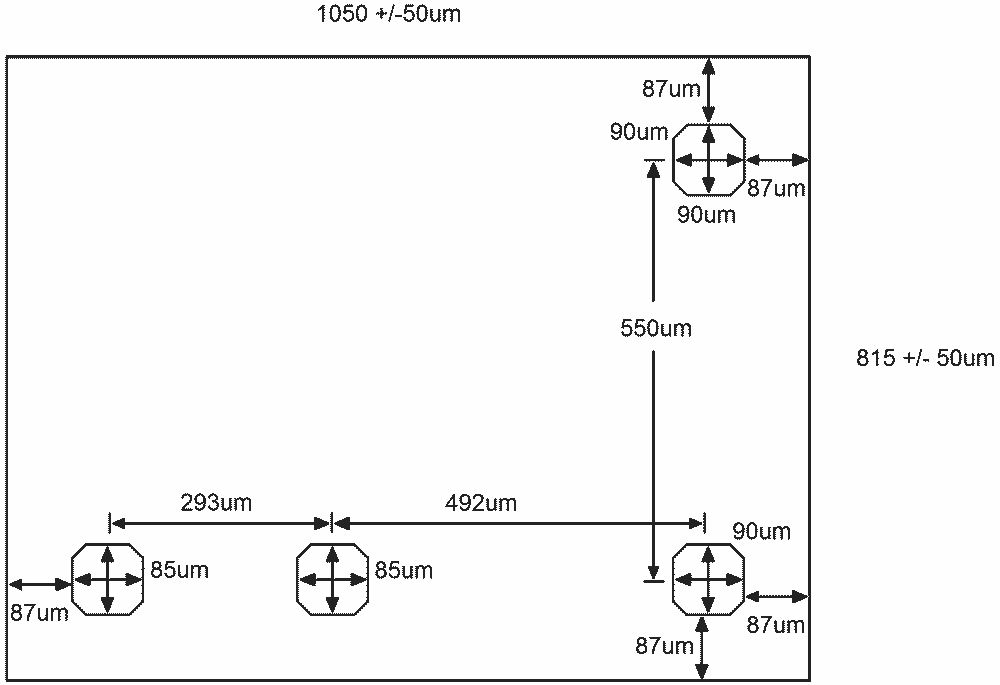

Die dimension

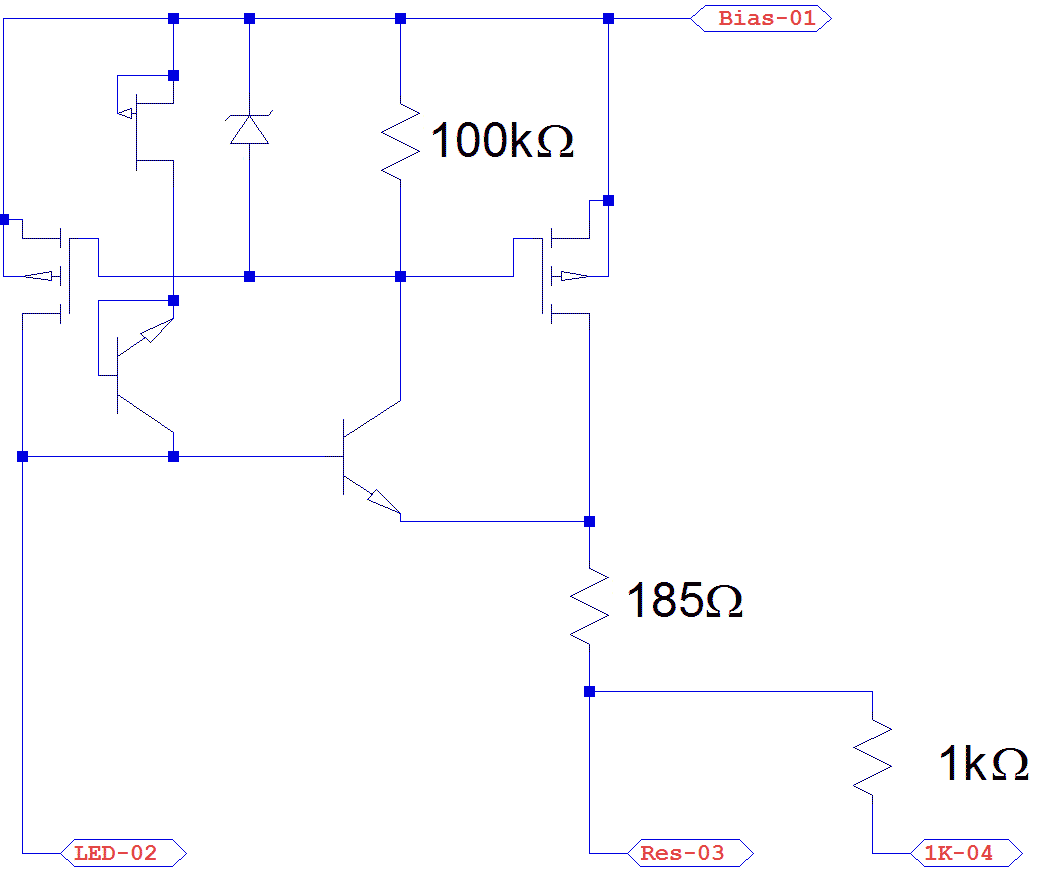

Equivalent circuit
