1200V High Side Switch

The 16SCT100 is a 1200V 15A fully integrated half-bridge high-side switch typically used in systems requiring H-bridges. The chip’s integrated circuitry drives an integrated MOSFET gate above the HV supply to ensure that the transistor is adequately saturated. All control lines are low voltage. Package creepage distances allow for 1200V operation without the use of conformal coating or slots.

16SCT100

Features

1200V Blocking Voltage Fully Integrated
No External Components
Low Rds On
Fast Turn-Off Times
Low Voltage Enable
Small TO-263 package

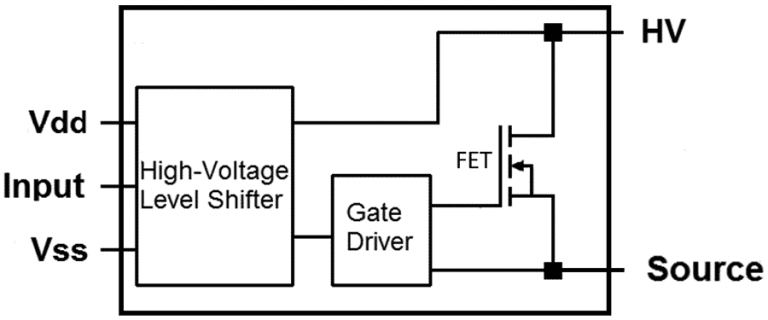

Block diagram

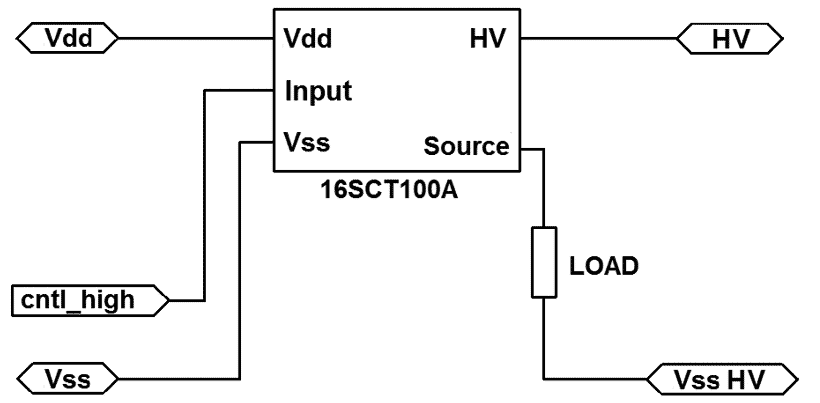

Typical Application

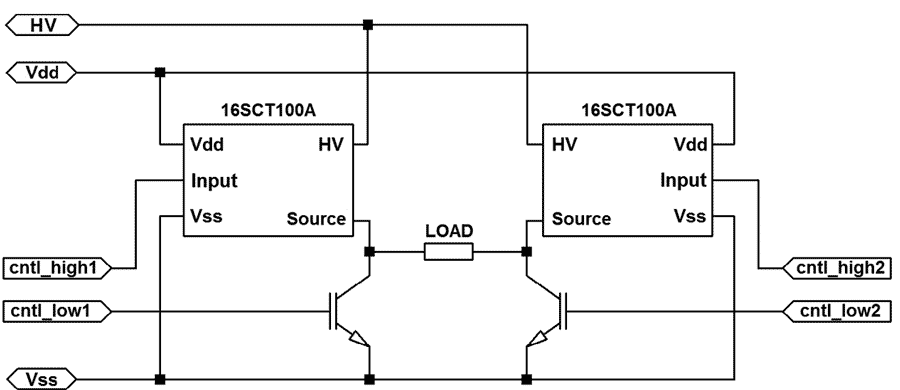

H-Bridge

High side switch

Please contact us for availability of this product
