15SCT000

2-channel Rad-Hard Residual Current Device

The 15SCT000C is a a dual-channel control circuit intended for application in a Residual Current Circuit Breaker (RCBO) or Residual Current Device (RCD). It features precision sense amplifiers and window comparators for sensing any imbalance in a current transformer, integrated together with fault integration timers and fault latches. External components configure the circuit for sensitivities of 10mA or 30mA as well as different line voltages. The circuit features allow trip feedback and active noise filters to minimize power-on and nuisance tripping.

Features

RCD Type A, AC & F
Dual Channel
Fast Tripping
Optional Ground Fault sensing
No External Components
Small foot print: QFN-24 5x5mm

Applications

Industrial RCD or RCBO Installations

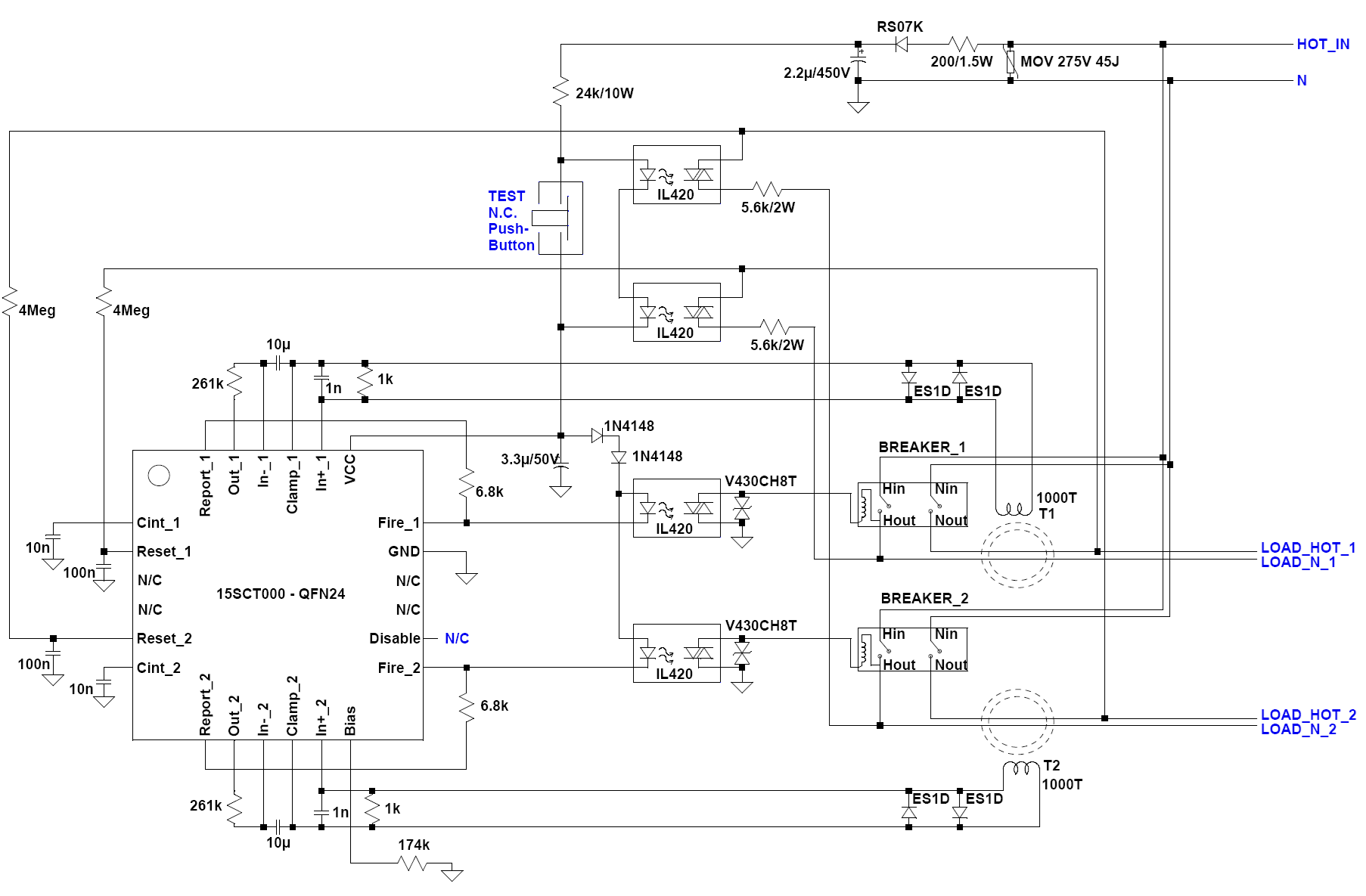

Typical Application
