10SCT

Transient surge suppressors

Features

20nSec Clamping Speed
+/- 12V Nominal Break-Over Voltage
Low leakage current
MRI Compatible
Multiple Configuration available

Applications:

Medical

Implant devices (Pacemakers/NeuroStim)
Monitoring device (EKG/ECG)

Industrial

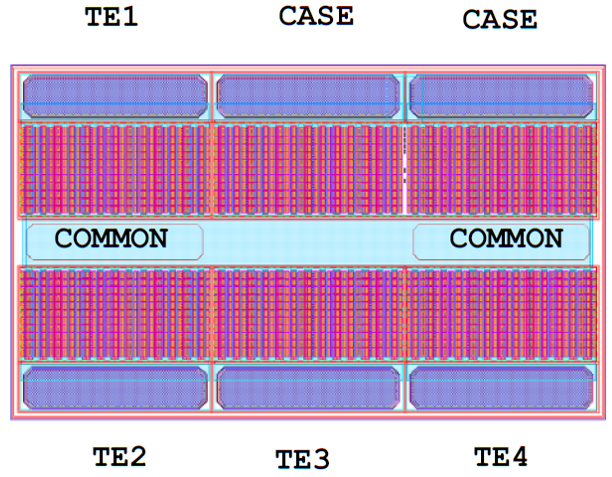

10SCT004 - Die

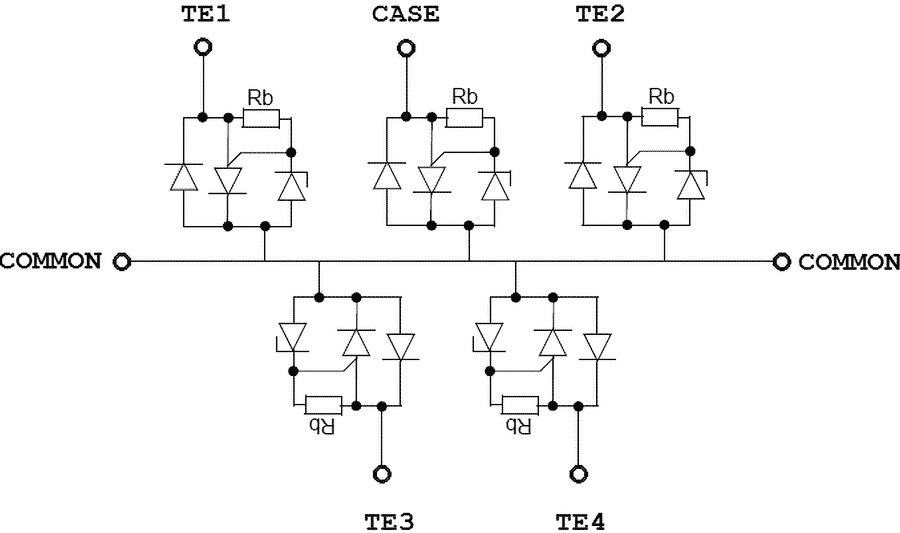

10SCT004 - block diagram

TSS Selection Guide

Description	TSS Part #	Electrodes	Case Specific Electrode	Expansion Electrode	MRI	Package	Dimension (mm)	Spice Model

Description	TSS Part #	Electrodes	Case Specific Electrode	Expansion Electrode	MRI	Package	Dimension (mm)	Spice Model
8-Terminal TSS	10SCT000	8	0			Die	1.1x1.6
4-Terminal TSS	10SCT001	4	0			Die	0.6x2.2
6-Terminal TSS	10SCT002	6	1			Die	1.0x2.2
5-Terminal TSS	10SCT004 10SCT004A	5	1			Die DFN-8	1.0x1.6 2.0x2.0
2-Terminal TSS	10SCT008	2	0			Die Bumped Die DFN-8	0.9x0.6 0.9x0.6 2.0x2.0
